Die Cooling and Jet Cooling
Water and Air Core Cooling Systems
Water/air spot cooling with Ieci technology. Pin test before each cycle and adaptive system with inverter (2013 patent). Open PLC and communication with all die casting machines. OPC UA ready and option of IoT 4.0.
JET COOLING
JET-PAD SYSTEM
CLOSED-LOOP JET COOLING UNIT
The JET-PAD system is a closed loop jet cooling unit, available in different sizes.
The closed loop allows the recovery of the water circulating in the core pins, decreasing the cost of chemically treated water that is discharged in conventional jet cool systems.
Temperature of core pins cooling water is also controlled; It allows avoiding any seasonal change and decreasing thermal shocks.
Thermoregulation for Core Pins
Delivery pressure 16 Bar
From 1 to 4 independent zones
Delivery pressure control
Broken pin test

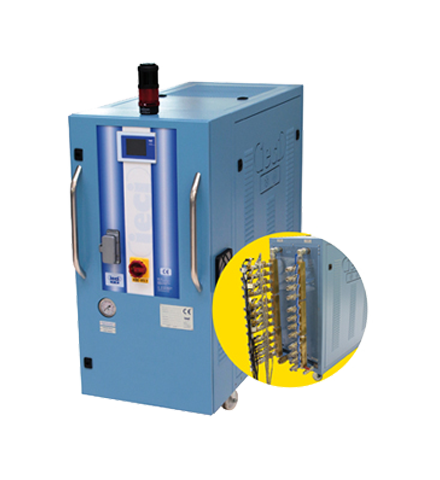

MULTI PAD SYSTEM
SPECIAL TEMPERATURE CONTROLLER FOR COOLING WATER MANAGEMENT
The PAD system offers the possibility to manage and control individually different cooling channels, whatever they are, spot cooling or tempering channels of the mold. In MULTI version, you can manage modular groups of 12 channels. The system allows you to choose the desired pressure and check the flow of water for every single channel. The system provides the ability to adjust the temperature of the supply water and monitors the temperature of return water for each channel.
The hydraulic system is equipped with two pumps and operated by a frequency converter on the main pump. Easy use and robust construction make the unit suitable for any production environment.
Control of Cooling Water

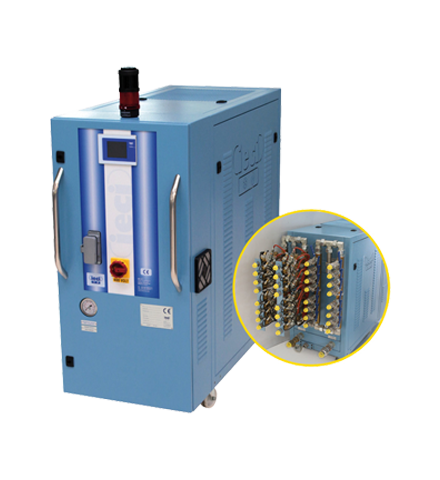

MULTIPAD 16 ZONES 160 °C
TEMPERATURE CONTROL UNIT FOR PROCESS WATER
The PAD system offers the possibility of managing and individually controlling several cooling and preheating channels, whether they are fountains or mold thermoregulation channels. In the MULTI version, it is possible to manage modularly groups of 16 channels. The supplied software allows you to choose the desired pressure and to check the passage of water for each individual connection. The system provides the possibility to regulate the delivery temperature, modulating the return water, even in synchrony with the injection phase.
The hydraulic system is equipped with two pumps and managed with a frequency converter on the main circulator.
The simplicity of use and the robust construction make the machine suitable for any production environment. The system allows the pre-heating of the mold, with open circuit, up to 85 ° C and subsequently, with closed circuit, up to 85 – 160 ° C.
Process water management and control system (pre-heating and cooling)
